Description

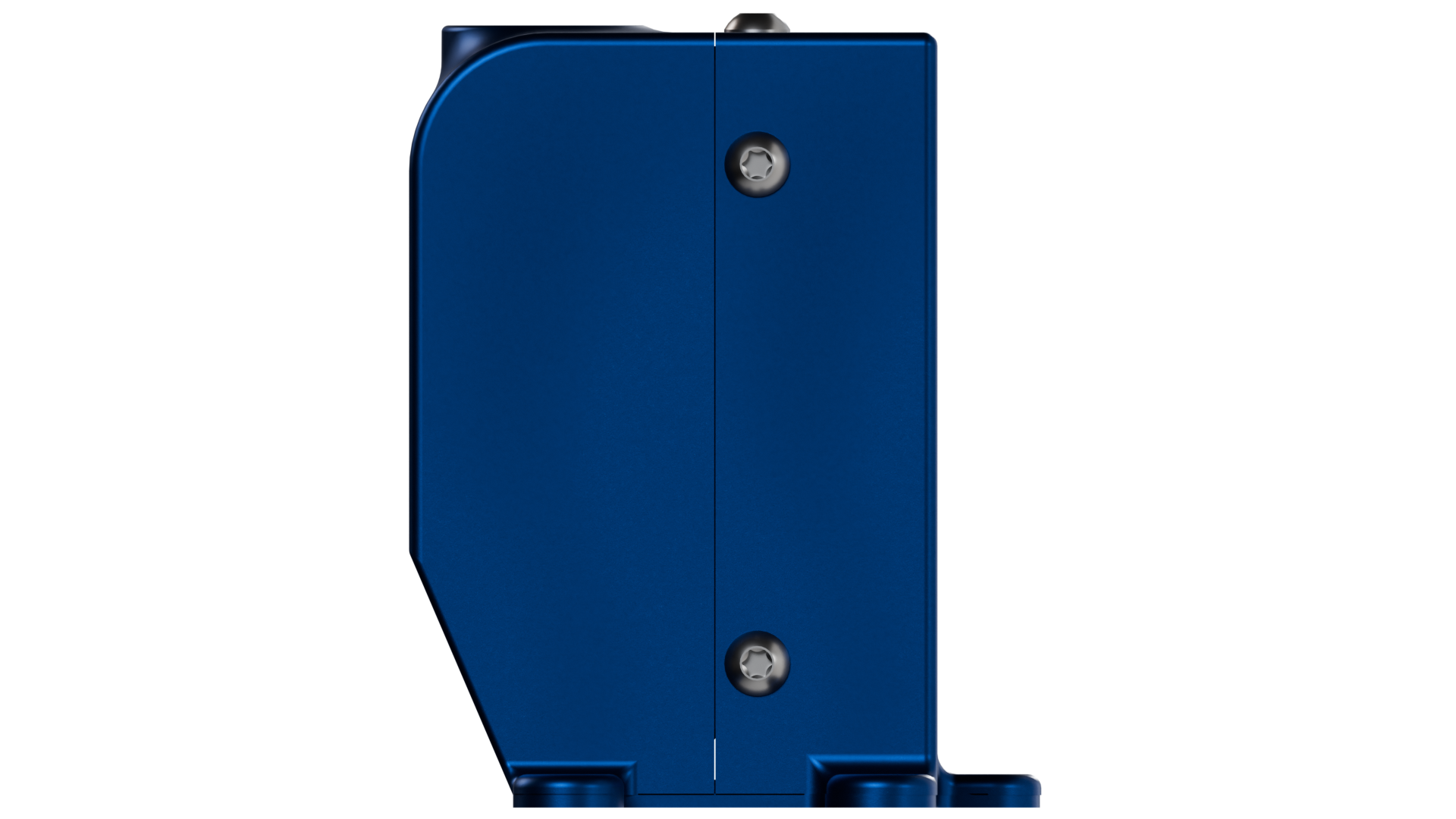

Triclops is a high resolution, three-camera system built to endure the harsh environment of space. It has a stereo camera pair that can be used for RPO applications such as depth sensing, spatial object detection, 3D mapping, and more. The center camera has a wider field of view for object acquisition.

Use Cases

• Rendezvous, Proximity and Docking Operations
• Satellite Servicing
• SSA/SDA
• Active Debris Removal

Key Features

• Full Motion Video: Can encode, transcode, and store days of recording within standard power and bandwidth constraints
• AI Edge Computing Capable of running inference at the edge through a patent-pending, novel AI/ML software approach
• Adaptive Exposure for real time optimization in variable light conditions
• Time Syncing between the cameras ensures smooth frame synchronization, calibration, and object tracking
• Double Video Buffer Structure Allows both RAW image retrieval and fully encoded video
• Dynamic Viewing Range: See both far and wide
• Customization: Change lenses or add your own software

Specifications

• Mass: 1.6 kg
• Dimensions: 160.5 x 225 x 102 mm
• Resolution: Up to 4K
• Field of View: 36.1°, 17.2°
• Sensor Type: CMOS, 1/1.7”
• Frame Rate: 2 - 60 FPS
• Power Supply: 28V
• Interconnect: Up to 1 GigE
• Operating Temp: -35 to + 80 °C
• Radiation Tolerant (inquire for details)
